CATV Passive Multiplexer CWDM Mux / Demux 16Channel Fiber road

Name: CATV Passive Multiplexer CWDM Mux Demux 16Channel Fiber road
Brand: Fiberroad
Price: 1 USD

Brand Name : Fiberroad

Model Number : FR-6000S-XXX

Certification : ISO9000, CE, FCC, ROHS

Place of Origin : China

MOQ : 1 PCS

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Packaging Details : Standard neutral or brand packing

Center Wavelength (nm) : 1270~1610 or 1271~1611

Channel Spacing (nm) : 20

Center Wavalength Accuracy (nm) : ±0.5

Maximum Power Handling (mW) : 300

Price : Pls send request details

Delivery Time : 2-3 workdays

Contact Now

CATV Passive Multiplexer CWDM Mux / Demux 16Channel Fiber road

Fiberroad’s CWDMs are based on thin film filter technology and core of packaged.Packaging options include fiber type and integration of aps and detectors for a complete Coarse Wavelength Division Multiplexing solution. The products are Telcordia GR-1221-CORE qualified, and RoHS compliant.

Key Features

Low Insertion Loss
Low PDL
High Isolation
Excellent Enviroment Reliability

Applications

WDM System
MAN
CATV System

Specifications

Parameter		4 Channel		8 Channel			16Channel
		Mux	Demux	Mux		Demux	Mux	Demux
Center Wavelength (nm)		1270~1610 or 1271~1611
Center Wavalength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth) (nm)		±7.5
Insertion Loss (dB)		≤1.5		≤2.5			≤3.5
Channel Ripple (dB)		≤0.3
Isolation (dB)	Adjacent	≥30
	Non-adjacent	≥40
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		≥50
Return Loss (dB)		≥45
Maximum Power Handling (mW)		300
Operating Temperature (℃)		-5~+70
Storage Temperature (℃)		-40~+85
Package Dimension (mm)	ABS Box	L100 x W80x H10.5			L140 x W115 x 18
	1U Chassis	440(W)× 44(H)×340(D)

Order Information

FR-6000S-XXX

－

X(The number of channel)

X(Channel Spacing)

OD=DEMUX

OM=MUX

ODM=MAX/DEMAX

04=4CH

08=8CH

25G: 25GHz

50G: 50GHz

100G: 100GHz

200G: 200GHz

C:CWDM

Product Tags:

optical multiplexer and demultiplexer

optical fiber media converter

China CATV Passive Multiplexer CWDM Mux / Demux 16Channel Fiber road wholesale

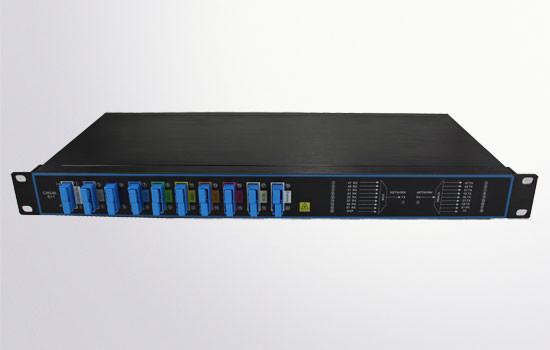

CATV Passive Multiplexer CWDM Mux / Demux 16Channel Fiber road Images
